Messrs. TANABE have been in business as an exclusive maker of Air, Gas compressors and cleaning machineries for over eighty-eight years and thus have been able to meet the demands of various industrial fields.
The marine compressor has especially become their core business  and they have delivered high-pressure compressors to thousands of large and medium size ships built all over the world.

TANABE sells spare parts, maintenance parts, complete units  and offers maintenance services, installations services, pipework construction and other operations for pistons, screw air compressors, cleaning equipment and other devices using compressed air.

MARINE COMPRESSORS

H Series

VH Series

LCH/VLH Series

LNG Compressors

LPG Compressors

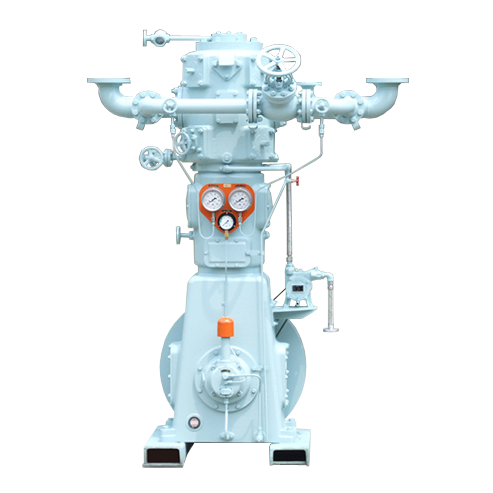

Marine H series

Medium pressure, water cooled, reciprocating compressors for engine start

Japan’s most popular choice of starting compressors

With more than 15,000 units now in service around the world this model speaks for itself. Reliability and very moderate running costs are the foundation of this popularity.

Pressure: 2.5 or 3.0 MPa
Capacity: 65 ～ 600 m ³ /h
Power: 15 ～ 132 kW
Feature: Vertical type, Reciprocating type, 2-stage, 1 ～ 3-cylinder
Model range: H-63 ～ H-374

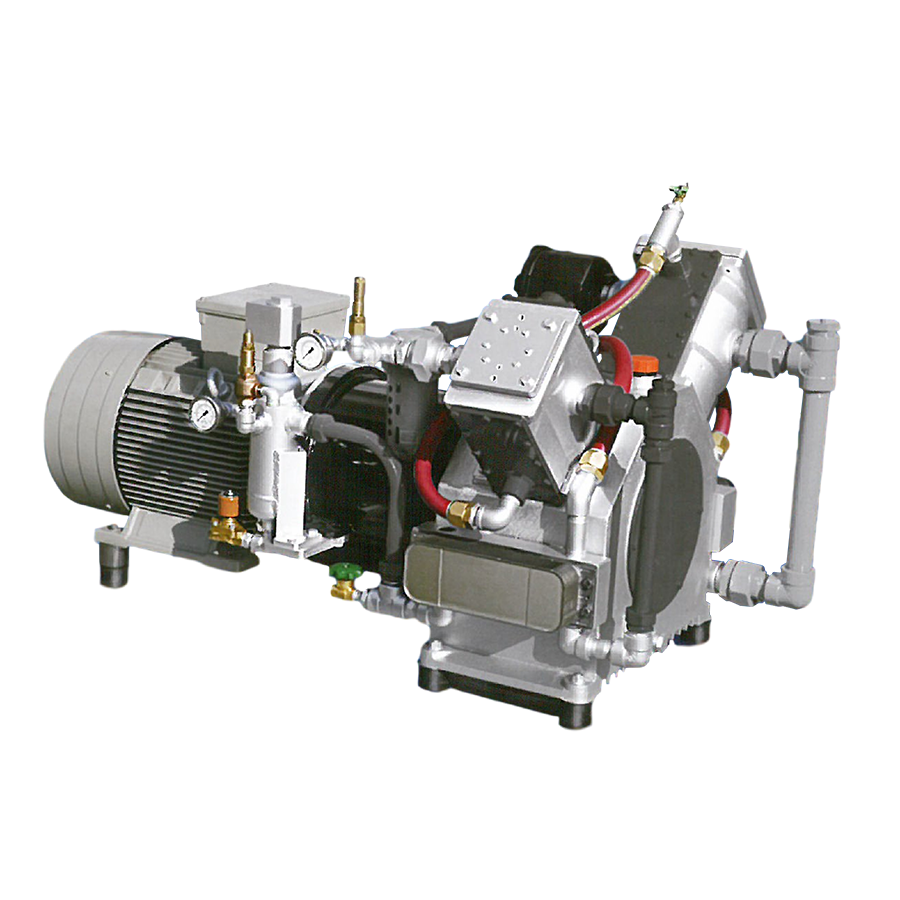

VH series

Medium pressure, water cooled, reciprocating compressors for engine start

Aiming for further energy savings

By reducing power requirements, we’ve achieved energy saving performance that is top class in the world.

Sound levels, vibration controls, and soot controls that meet ILO regulation levels

Pressure: 2.5 ～ 3.0 MPa
Capacity: 80 ～ 121 m ³ /h
Power: 18.5 ～ 30 kW
Feature: V-type, Reciprocating type, 2-stage, 2-cylinder

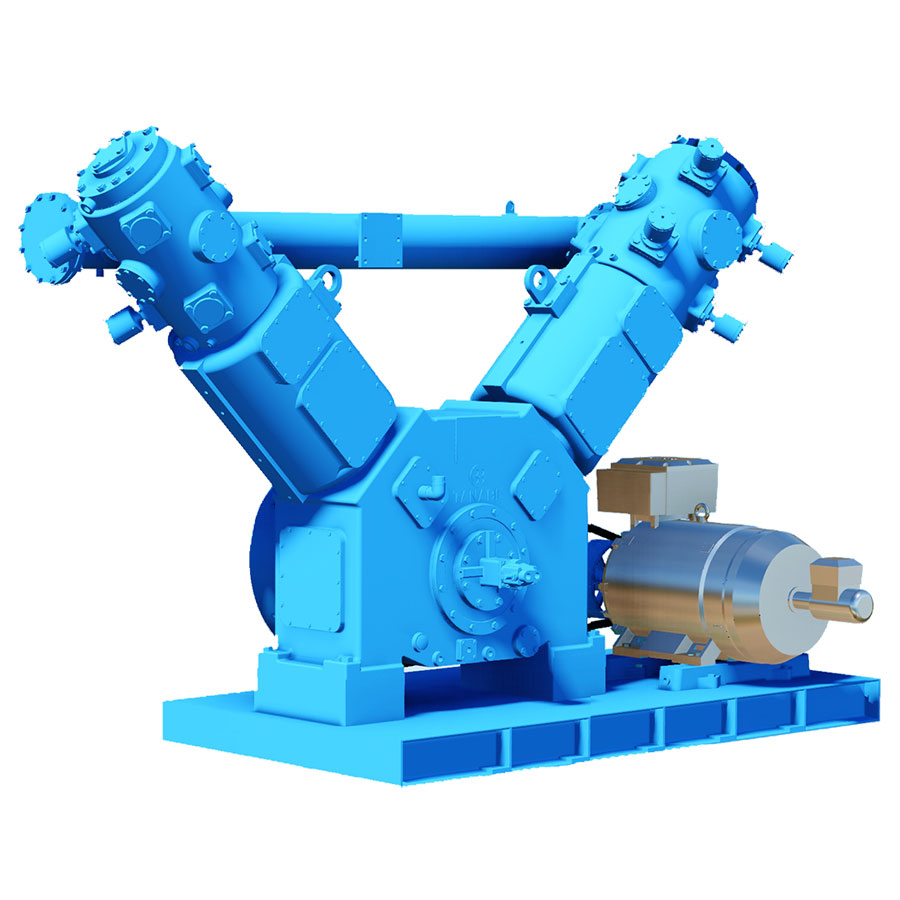

LNG compressors

LNG ship fuel supply gas compressor

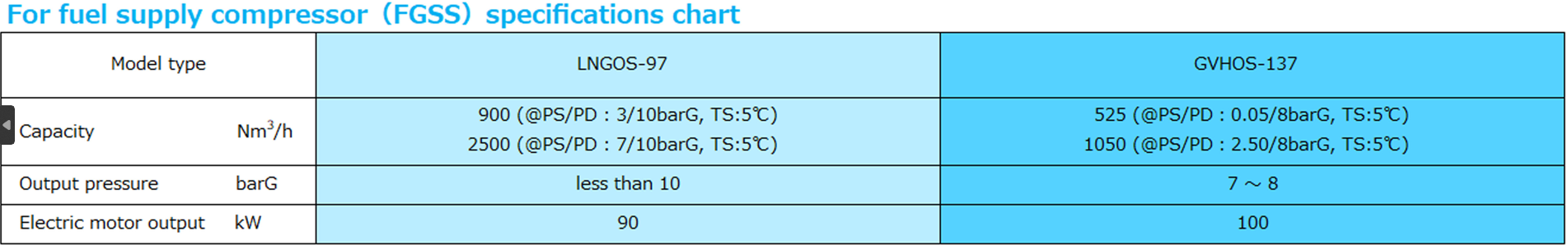

The following specifications are an example of a oil-free reciprocating type product. Specifications other than those below and refueling screw types are also handled. If you need products with specifications other than those below, please inquire with our sales office.

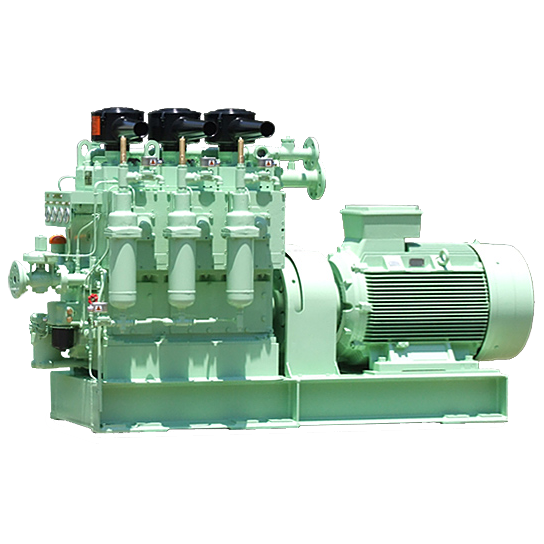

LPG compressors

Compressors for LPG cargo

World Leading Model

(Market Share: Domestic 80%, International 50%)
These gas transfer compressors have secured their unique presence on pressurization type LPG boats because of their unmatched reliability and support provided throughout their working life by Tanabe.
